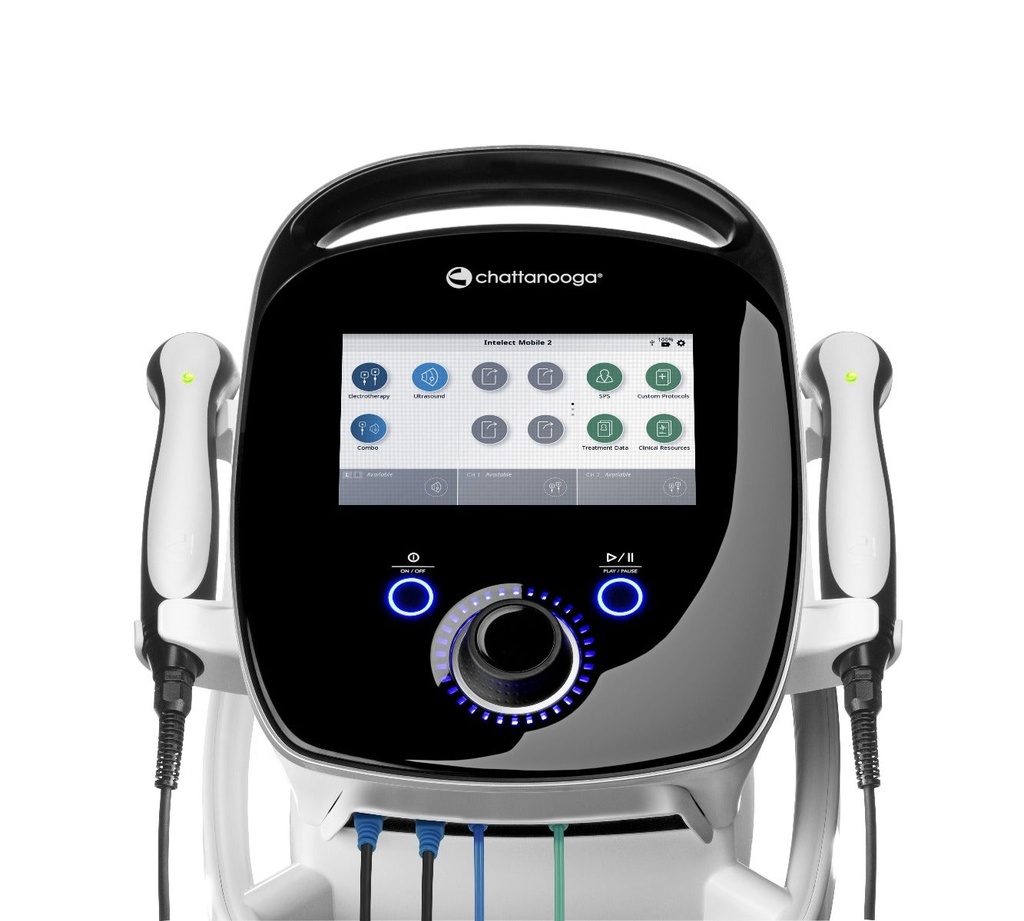

Chattanooga Intelect Mobile 2 Combo – electrotherapy and ultrasound

Chattanooga Intelect Mobile 2 Combo combines two-channel electrotherapy and 1 and 3 MHz ultrasound in a professional physiotherapy device. Use the modalities separately or in combination therapy. The standard package includes a 5 cm² applicator; the cart, vacuum system and additional applicators are optional.

Electrotherapy and combination therapy

Two electrical stimulation channels support treatment configured by a qualified practitioner. For combination therapy, the manufacturer documents five waveform families: interferential, VMS, High Volt, asymmetrical biphasic TENS and symmetrical biphasic TENS. This is not the complete list of device waveforms, which may depend on the software version.

Waveforms

• Interferential current (traditional IFC, 4-pole)

• Premodulated IFC (2-pole)

• Asymmetric biphasic current – TENS

• Symmetric biphasic current – TENS

• VMS

• Isoplanar

• Dipole

• VMS Burst

• VMS FR

• Monophasic pulsed triangular

• Monophasic pulsed rectangular

• Galvanic

• Interrupted galvanic

• Low-level galvanic

• Russian

• Träbert

• Han stimulation

• Microcurrent

• Diadynamic LP, MF, DF, Cpid / Cpiso

• Monophasic triangular with pulses

• Monophasic rectangular with pulses

Stim indications

TENS

• Symptomatic relief of chronic pain

• Management of postoperative pain

NMES

• Muscle re-education

• Increase of local blood flow

• Relaxation of muscle spasms

• Maintenance / increase of range of motion

Ultrasound and applicator selection

Ultrasound operates at 1 or 3 MHz, continuously or pulsed, with duty cycles of 10%, 20% or 50%. Coupling monitoring helps check contact between the applicator and treatment area. The practitioner selects the frequency, applicator and settings; nominal applicator size is not the same as effective radiating area (ERA).

The standard 5 cm² applicator is included in the device price. Add 1, 2, 5 or 10 cm² applicators, each at the same additional price. The 5 cm² option is a second applicator, not a charge for the included one. Sizes are nominal; accessories must be designed for Intelect Mobile 2.

Ultrasound

• Frequency: 1 MHz; 3 MHz

• Duty cycle: 10%, 20%, 50%, continuous

• Pulse repetition rate: 16, 48, or 100 Hz

• Pulse duration: 1–31.25 ms

• Max (on): 31.25 ms

• Min (off): 5 ms

Electrical protection type:

• Ultrasound: Type BF

• Electrotherapy: Type BF

• Vacuum electrotherapy: Type BF

• Electrotherapy + ultrasound: Type BF

Ultrasound indications

• Relief of pain caused by muscle spasms

• Relief of pain from contractures

• Relief of pain associated with ligaments

• Sprains, tendinitis, and muscle spasms

Package and configurations

The standard package comprises the Combo unit, 5 cm² ultrasound applicator, four 6 × 8 cm carbon electrodes, channel 1 and 2 leadwires, self-adhesive electrodes, fixing straps, 250 ml ultrasound gel and power cord. The cart, vacuum system, battery and additional applicators are not standard equipment.

• 6 × 8 cm rubber electrode (1 set)

• Stim lead wire kit Ch 1/2

• 250 ml ultrasound gel bottle

• 5 cm (2") Dura-Stick® Plus pads

• Intelect Mobile 2 5 cm² ultrasound applicator

• Intelect Mobile 2 USB stick

• Mobile 2 printed quick guide

• Chattanooga straps

• Intelect Mobile 2 EU power cord

Select one configuration: device without cart, device with an accessory storage cart, or device with cart and vacuum system. The last option includes the cart, so the standard cart price is not added again. Vacuum is used with suitable electrotherapy electrodes; it is not a function included in the standard unit.

Vacuum

• Power supply: 0–25 VDC, max current 4A

• Electrical type: Type BF

• Vacuum range: 0–600 mbar ±5%

• Standard device, without cart
• Device with cart
• Device with cart and vacuum

Interface and use

The 7-inch colour touchscreen provides SPS suggested protocols, an anatomical library and custom programmes. Treatment data can be stored and imported/exported via Bluetooth; this does not mean wireless electrodes. The unit measures 340 × 355 × 150 mm and weighs 3.1 kg without battery or cart. The optional battery is quoted on request.

• 7" high-resolution color touchscreen

• Upgradable software – future-ready technology

• Import/export capability (Bluetooth)

• Treatment data storage

• Ergonomic design

• Lightweight and portable, with ergonomic handle

• Optional custom carrying case for safe transport

• Optional cart with drawers and large wheels

• Home use: compliant with IEC 60601-1-11, suitable for patient home treatment

• Smart interface with touch keys and interactive lights indicating device or port status

• Suggested Protocol Setup (SPS): integrated protocols based on current clinical evidence

• Anatomical library with high-resolution images for patient explanation

• Ability to save custom protocols

Qualified healthcare staff must operate the device and select settings according to the manufacturer’s instructions and patient assessment. Check cables, electrodes and applicators before use; follow the manual for cleaning and maintenance. Suggested protocols do not replace clinical judgement. Refer to the supplied configuration’s manual for contraindications and precautions.

• Power supply: 100–240 V AC, 1.0–0.42 A, 50/60 Hz

• Electrical class: Class II

• Operating mode: Continuous

• Dimensions / Weight (without battery, without cart): 340 × 355 × 150 mm / 3.1 kg

Frequently asked questions

Is this a 3-in-1 device?

It offers electrotherapy, ultrasound and combination mode; vacuum is not included by that description.

Can I order multiple applicators?

Yes, select additional sizes, each added to the configuration price.

Does it run on a battery?

Only with the optional battery, which is not included with cart selections.

Is everything pictured included?

The package description and selected options define the supplied equipment.

SKU: FIT1110
