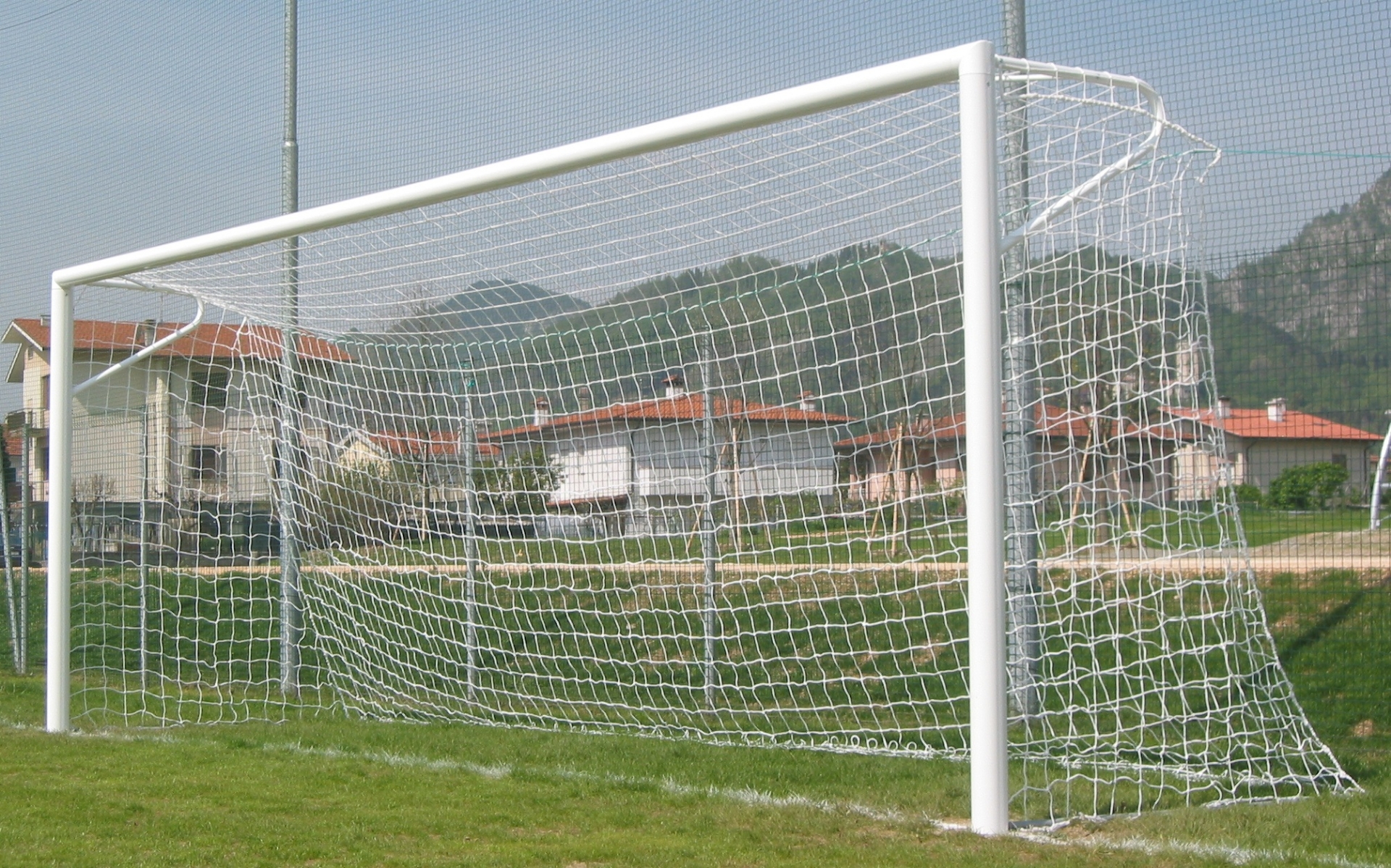

Fixed aluminium football goal 7.32 × 2.44 m with net included — VI 5905

One goal with one net and the functional equipment listed below. The selling unit is one equipped goal.

Technical specifications

• Model: VI 5905
• Dimensions: 7.32 × 2.44 m
• Material: Aluminium
• Profile: Oval, internally ribbed, 100 x 120 mm
• Joints: Welded corners, aluminium alloy 6005
• Crossbar: Two-piece crossbar
• Net fixing: Plastic hooks
• Installation: Ground sockets
• Upper depth: 0.8 m
• Net supports: Galvanized upper net supports
• Overall dimensions: 7.52 × 2.54 m
• Crossbar system: No Gravity
• Standard: Certified — UNI EN 748 (Type 2)

Package contents

• 1 × Fixed aluminium football goal 7.32 × 2.44 m
• 1 × Goal net 7.32 × 2.44 m, PE Ø4 mm — VI 6105
• 1 × Folding bottom net frame — 7.32 × 2.44 m — VI 6056
• Ground sockets

Goal net — 6105

• Model: 6105
• Goal size: 7.32 × 2.44 m
• Net dimensions: 7.5 × 2.5 m
• Material: PE
• Cord diameter: 4 mm
• Net construction: Square, knotted mesh
• Colour: White
• Mesh size: 130 × 130 mm
• Upper depth: 1 m
• Lower depth: 2 m

Folding bottom net frame

• Model: 6056
• Material: Aluminium
• Profile: Ø40 mm
• Dimensions: 7.36 × 2.02 m
• Folding: Included

Installation and use

Filling material, foundations and installation work are not included. Assemble and secure the goal according to the manufacturer’s instructions before use.

Optional accessories

• Bottom frame padding set — VI 6042
• Ground socket cap — 100 × 120 mm — VI 5937
