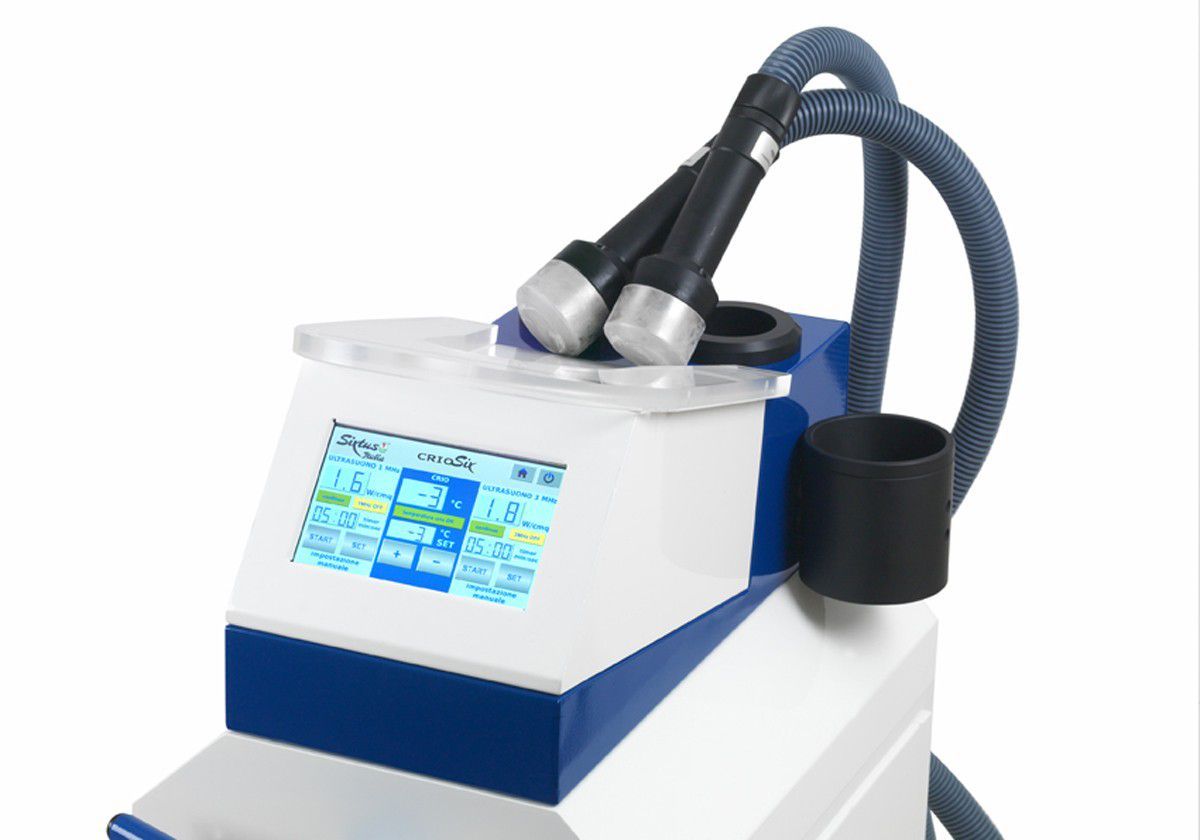

CrioSix - Cryoultrasound

Criosix is a device that combines the effects of cryotherapy with those of ultrasound therapy. With Criosix, it is possible to work both manually and with preset protocols.

Specifications:

• 2 treatment heads, which can be cooled to a temperature of -8 degrees
• Simultaneously with cold therapy, the two treatment heads are capable of delivering an ultrasound wave at 1 MHz and 3 MHz
• Equipped with casters
• 7-inch touchscreen interface panel that allows monitoring and display of parameters using the provided stylus

Technical features:

• Power supply: 230V, 50Hz
• Emission mode: Continuous-Pulsed-Intermittent
• Modulation waveform in pulse mode: square wave
• Maximum effective intensity at 1 MHz: 3 Watt x cm2
• Effective radiation area (ERA) at 1 MHz: 7 cm2
• Maximum effective intensity at 3 MHz: 2.5 Watt x cm2
• Effective radiation area (ERA) at 3 MHz: 4.9 cm2
• Cryotherapy down to -8°C
• Beam non-uniformity ratio (BNR) for each head: 4.4
• Dimensions 64 x 59 x h 150 cm
• Weight approximately 75 kg
• Class II medical device
• CE 1936
